Auto pixel-shift

Scroll Prev Top Next

To automatically correct the alignment of the mask and the live image, select the auto pixel-shift tool using the Radiant-Dicom-Viewer-DSA-Mask-Auto-Pixel-Shift-Button button or by pressing the  Ctrl + M  keys.

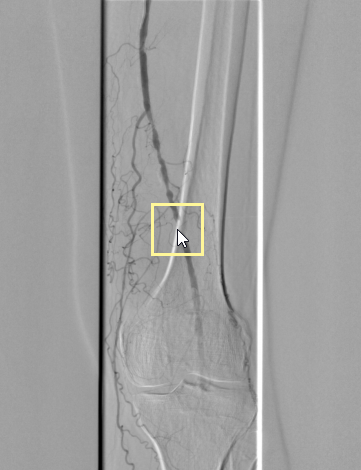

Move the mouse cursor over the area (defined by the yellow square) in which you want to correct the alignment.



Radiant-Dicom-Viewer-DSA-Mask-Auto-Pixel-Shift-Misaligned



Press the left mouse button on the image and the mask will be shifted automatically so that the best alignment in the specified area is obtained.



Radiant-Dicom-Viewer-DSA-Mask-Misaligned-Corrected
