Split mask mode

Scroll Prev Top Next

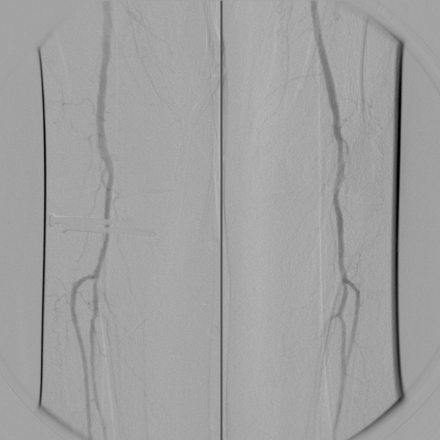

The split mask mode allows you to apply different pixel shifts for the left and right parts of the image. This can be helpful with lower-limb fluoroscopy image in which the limbs move in different directions, and there is no means of correcting the mask with a single, global shift.

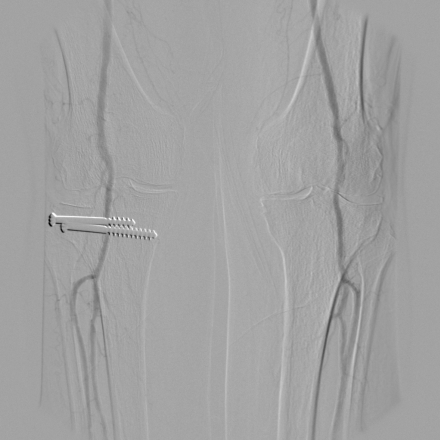

Uncorrected mask

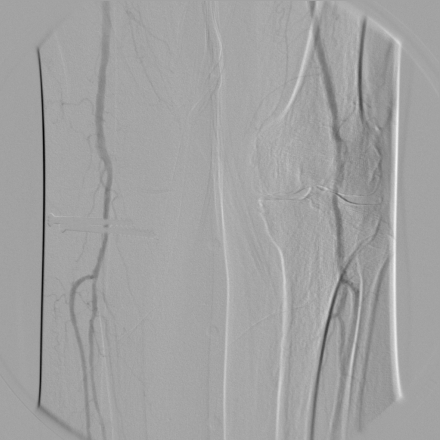

Mask corrected for the right limb

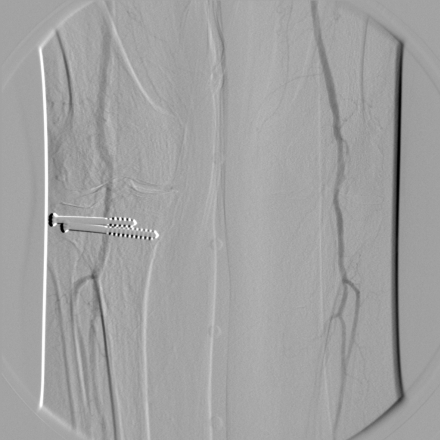

Mask corrected for the left limb


To enable the split mask mode, select the Radiant-Dicom-Viewer-DSA-Split-Mask-Button button or use the  Ctrl + Alt + /  shortcut.


You can subsequently correct the masks on both sides of the image using the manual or automatic pixel-shift tools.




The offset from the original mask position (in pixels) for each side of the image will be displayed in the bottom-left corner of the image: Radiant-Dicom-Viewer-DSA-Split-Mask-Pixel-Shifts
