Send to PACS

Scroll Prev Top Next



Note: this feature requires the DCMTK add-on package. When you first try to use it, you will be asked to download the required extension.



You can send images to PACS either from the main viewer window or from your local database.

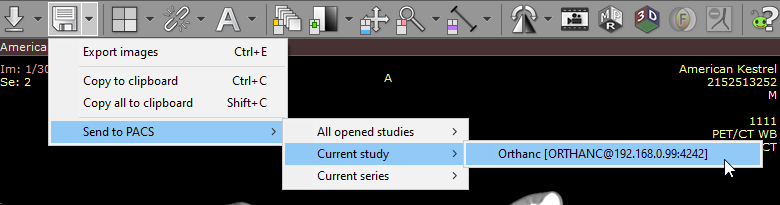

To send images from the viewer, click the arrow next to the  Export  button, select  Send to PACS . You can send  All opened studies , the  Current study  or only the  Current series . Select the respective option, and finally, choose the destination PACS node.



RadiAnt-DICOM-Viewer-2D-Viewer-Send-To-PACS

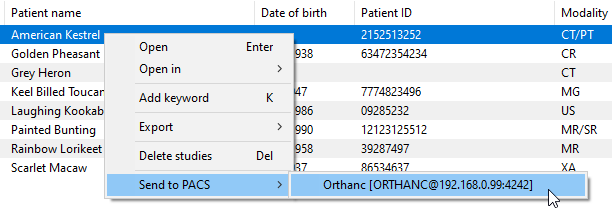

To send studies from your local archive, select the study (or multiple studies), right-click to show the context menu, select  Send to PACS  and the destination PACS node.



RadiAnt-DICOM-Viewer-Local-Archive-Send-To-PACS

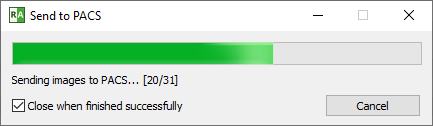

The sending process will start.



RadiAnt-DICOM-Viewer-Send-To-PACS-Progress

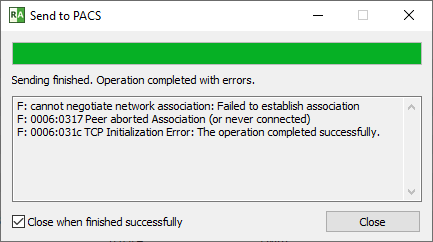

If there are any errors encountered during the procedure, the message will be displayed below the progress bar.



RadiAnt-DICOM-Viewer-Send-To-PACS-Error
