RadiAnt DICOM Viewer - Discussion Forum
RadiAnt DICOM Viewer 3.1.10 BETA

May 5, 2016 12:38 PM
by RadiAnt

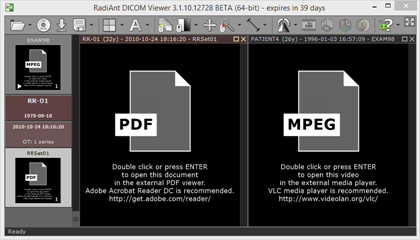

This version brings support for the encapsulated PDF documents and the MPEG-2 and MPEG-4 transfer syntaxes:

1.2.840.10008.1.2.4.100 corresponding to MPEG2 MP@ML option of the ISO/IEC MPEG2 Video standard
1.2.840.10008.1.2.4.101 corresponding to the MPEG2 MP@HL option of the ISO/IEC MPEG2 Video standard.
1.2.840.10008.1.2.4.102 corresponding to the MPEG-4 AVC/H.264 High Profile / Level 4.1 of the ITU-T H.264 Video standard.
1.2.840.10008.1.2.4.103 corresponding to the MPEG-4 AVC/H.264 BD-compatible High Profile / Level 4.1 of the ITU-T H.264 Video standard.

Forum post picture
May 5, 2016 12:39 PM
by RadiAnt

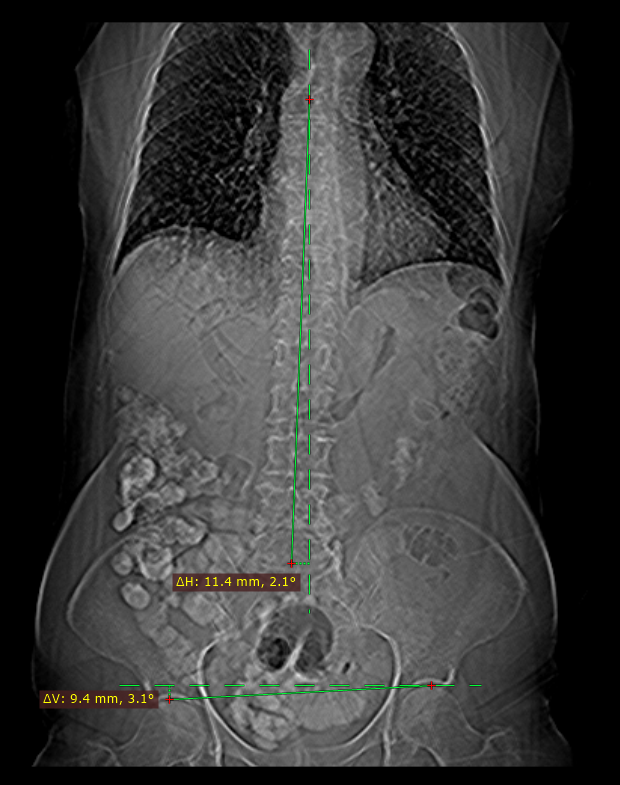

There's also a new measurement tool - "Deviation", it can be used to show the horizontal or vertical distance between two points, e.g. the height difference between femoral heads.

Download here: http://www.radiantviewer.com/beta

Forum post picture
May 6, 2016 04:00 AM
by Tommy
the new deviation tool is very useful and easy to use!!!
good job, Maciej!!! you are the best!!!
May 6, 2016 06:59 AM
by kertz1001
(im not native english speaker, sorry for my strange english if u mind)

hello, i thank for your splendid work.
but i still have some requests & questions.

1. saving / reminding check boxes value of PACS locations?
can we do it on a product version?

now i put all AET of 20 DCM4CHEEs.
all check boxes are always on when RadiAnt launch.
doing check on/off is troublesome.

and more 1 thing relate this.

im thinking interlocking between HIS(Clinical, Medical Record System) and RadiAnt.
i want to make user appoint PACS on check boxes.
i know difficulty of behavior of GUI & command line.
this time, i could check command line can work with multiple "-paet".
RadiAntViewer.exe -paet PACS1 -paet PACS2 -pstv 00080050 CT_100317287 // by accession number
RadiAntViewer.exe -paet PACS1 -paet PACS2 -pstv 00100020 patid00001 // by patient ID
command line dosent refer check boxes now.

so if pacs.xml(or something) keeps check boxes value like above,
i will make small program to interlock with HIS for ourself (it mayb named RadiAntLauncher?).
HIS kicks RadiAntLauncher ...
RadiAntLauncher refer check boxes value on pacs.xml..,
RadiAntLauncher prepare command line arguments for RadiAnt and kick RadiAnt...
and "welcome to RadiAnt World".

....what do u think? complicate?

2. adding measurement tool CTR - Cardio Thoracic Ratio

for measurement. now RadiAnt has basic tool, Cobb Angle, Deviation.
i think CTR is not so difficult.
there may b some way for CTR measurement. its up 2 u.
anyway our lazy doctor wont use Calculator. please.

3. about thumbnail

i wish newest study(latest study) is upper.
and id like to see newest study first.
scrolling down for refering old study is not troublesome.
because OsiriX is like that.

4. adding user customizable button to launch external program (optional request)

people may want to launch external program to write simple report.
actually id like to launch MS-Word.

but this is optional, low priority.
i have to know infomation of current presenting study.

think u for reading my poor english.
i wrote all of my requests. nothing more.

best regards.

May 10, 2016 04:04 PM
by RadiAnt
Hi,

1. We will make RadiAnt remember the chosen PACS locations after closing.
2. We may add this tool in the future versions.
3. Perhaps we'll add some toggle to change sorting.
4. We'll think about this feature.

Greetings,
Maciej
May 16, 2016 08:36 PM
by Aaaaaaa
ctr just add ratio to First measurement to the consequent ones. Evans ratio CTR whatev ratio. Makes things easier.
May 18, 2016 01:06 PM
by RadiAnt
@Aaaaaaa

We should consider this. Thanks.
May 30, 2016 02:17 PM
by Esteban Nolasco

Good morging. We need that programa add features lite MIP and MinP for use in thorax studios.
A tool to overlap images in a same studio for osteoarticular measures.
Customize Windows in a more simple way and not overwriting options archive.
Greetings and thanks.
Jun 3, 2016 06:20 AM
by RadiAnt
The oblique MPR/MIP/MinIP will be the next major feature.
We will work also on a dedicated window for program settings.
Greetings!
Jul 4, 2016 04:53 PM
by Adam
When export to PACS?
Jul 11, 2016 07:31 PM
by RadiAnt
Most probably sometime next year.
Feb 15, 2017 03:08 PM
by Dr Joel G Mathew
Radiant is my favorite viewer. I was searching through forums as early as 2011 where an annotation tool was requested. Kindly do add a "Text annotation" tool to the upcoming release. The pen tool is ok, but it is limited. I find I cant use it for a teaching slide because of inability to type text annotations in it.
