RadiAnt DICOM Viewer - Discussion Forum
RadiAnt DICOM Viewer 5.1 BETA (3D movie creator, 3D snapshots, unlimited scalpel undo, progressive GPU VR, image filters)

Jul 12, 2019 10:01 AM
by RadiAnt
Progressive rendering in the 3D VR and MPR windows is now available!

Let us know if it improves your experience on NVIDIA GPUs.
Jul 12, 2019 02:16 PM
by RadiAnt
And here's a little demo:

Our tests show that with virtually any supported NVIDIA GPU, you should get better results than with the CPU. Up to now, only the fastest GPUs allowed to interact adequatly with the volume.
Jul 12, 2019 09:29 PM
by GT
Thank you very much!! This is great work for the hole world medicine!
Jul 15, 2019 10:20 AM
by RadiAnt
You are welcome :-) Please check our next beta: 5.1.2

* Added option to set the quality of rendering during interactions in the 3D VR and MPR windows (the Settings button).
* Added support for extended mouse buttons (the forward button for panning / tha back button for ROIs).

Jul 16, 2019 05:30 PM
by The Vet
I tested the new beta - but the 5.0.1 is faster an gives better results in my system . NVidia GTX 1060
Jul 21, 2019 06:44 PM
by RadiAnt
This is rather not possible, there were no changes that could slower the GPU rendering engine. Perhaps you could try changing the progressive rendering option under the settings button in VR window.
Jul 21, 2019 06:55 PM
by RadiAnt

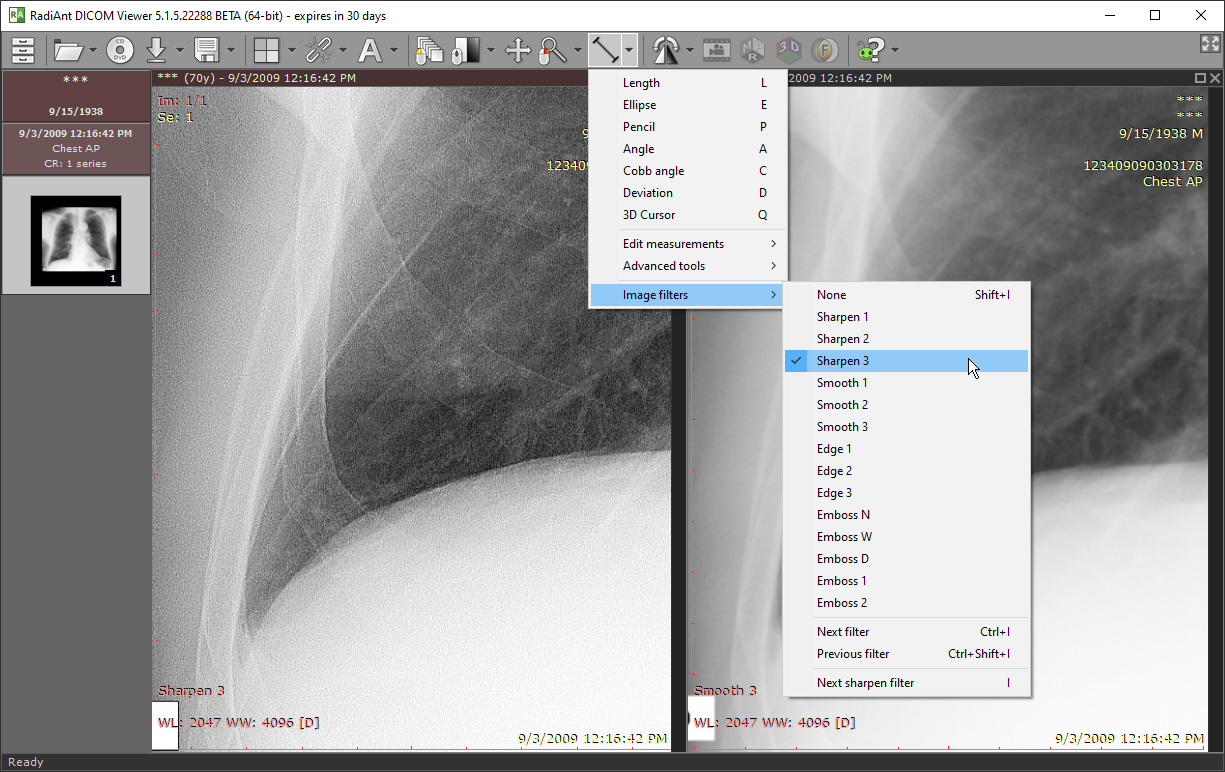

Some of you waited for this feature for a very long time. Now it's finally here: image filters.
Check out the latest beta:


Ctrl+I - next image filter
Ctrl+Shift+I - previous image filter
Shift+I - disable filters
I - next sharpen filter (as probably this will be the most frequently used one)
Forum post picture
Jul 22, 2019 09:25 AM
by Tommy
very useful for conventional radiology images (CR and DR)
Jul 22, 2019 12:01 PM
by RadiAnt
Also, it could be useful for lung and bone CT, when there are no original sharpened series.
Jul 23, 2019 02:37 PM
by RadiAnt
Today comes a new beta with a little feature that can save your precious time :-)
Jul 27, 2019 06:58 PM
by Vassilios M.
I downloaded the new version.
Very nice work !!! Congratulations.

Only one question, if i download to the database for example from a CD/DVD, where is the examination stored ??? is it possible to change the directory ? This is important if someone download many and/or large files !

Thank you !!
Aug 3, 2019 01:10 PM
by RadiAnt
@Vassilios M.

Thank you for your kind words!

Please check this link for the info about storage location:

You can move the database and the storage folder to your preferred location.
Aug 3, 2019 01:11 PM
by RadiAnt

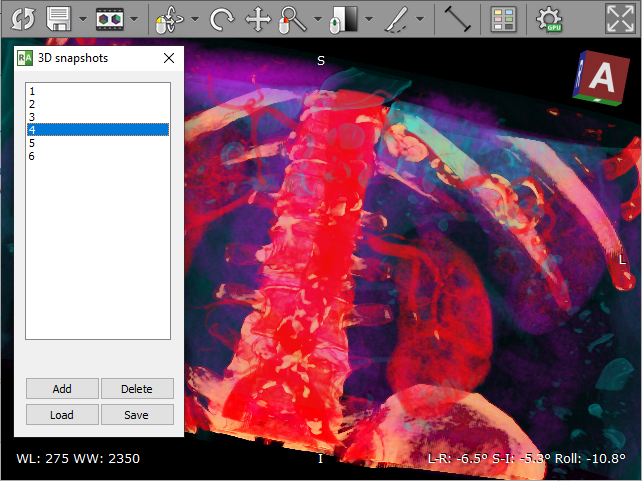

Today we're releasing a new beta version: 5.1.10

The "3D snapshots" feature is the new addition.
Just press F3 in the VR window and explore new possibilities.

Looking forward to your comments!
Forum post picture
Aug 3, 2019 01:57 PM
by RadiAnt
Here's the list of keyboard shortcuts:

K - take a snapshot of current view
] - next snapshot
[ - previous snapshot
F3 - show snapshots tool window
Ctrl + F3 - load snapshots from file
Shift + F3 - save snapshots to file
Aug 8, 2019 11:14 AM
by Mungunsukh
Is it possible to load RadiantViewer from local database using command prompt parameters?
Once study is already saved in localdb, it is nice to open it from localdb using some command parameter

Aug 15, 2019 07:52 PM
by Marcel
Great addition the 3D snapshots. Don't you think MPR snapshots would be usefull as well? The same implementation could be added to the MPR window.
Aug 17, 2019 02:39 PM
by RadiAnt

No, currently you cannot open from DB using command line. We will add this option in the future.


Actually, the 3D snapshots feature is a "by-product" of the 3D movie creator available in the latest beta (5.1.12). I think that all viewers (2D, 3D MPR) will have the option to save their state in the database in the end.
Aug 17, 2019 03:05 PM
by RadiAnt

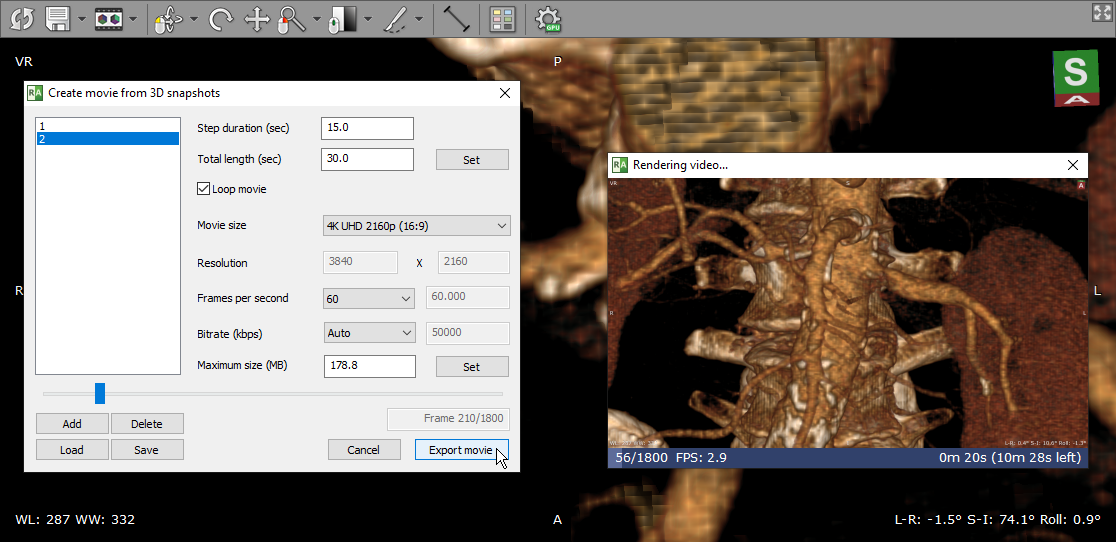

Create movie from 3D snapshots - available in our latest beta (5.1.12) -
Forum post picture
Aug 18, 2019 11:13 AM
by RadiAnt
How to quickly create your VR movie:

1) Open 3D VR window (F3)
2) Add key frames to your movie - rotate, move, zoom, change window, etc. to obtain the desired intermediate view and press (K). At least two key frames are required.
3) Open 3D movie settings (Ctrl+F4)
4) Click "Export movie"
Aug 20, 2019 01:45 PM
by Woody
Fantastic work! Amazing in such a small package.
I am running Dell Precision 5810 with Quadro Pro 2000P GPU, and cannot load the latest drivers, so I cannot take advantage of the GPU acceleration. Any chance you could reach back to legacy cards?

Thanks Again
Aug 20, 2019 08:01 PM
by Ageev
Thank you aa lot for a new version.

Please tell how can I ajust or disable horizontal scrolling sensivity?
Now when I scroll series down I got series change also because of horisontal scrolling is actiive om the same wheel on my mouse and disabling it in Win 7 does not work in RadiAnt.

What can I do with this issue?

Thank you
Aug 22, 2019 04:43 AM
by Ageev
UPD. I think it would be great to have a tag for it in options.xml in <tools> section.
<hmw>0</hmw> <!-- horisontal mouse wheel - next/previous series navigation: enabled (1) or disabled (2) -->

Thank you again.
Aug 22, 2019 08:08 AM
by Jonas
I have read that you now allow opening DICOMs from multiple folders. It would be great to be able to drag-and-drop or import from multiple ZIP files too.
Aug 22, 2019 02:56 PM
by Woody
Ctrl-Shft-N not working on my setup.
Aug 23, 2019 03:25 PM
by RadiAnt
Thanks for your kind words, guys!


Sorry, but there's no way to support older cards...
Can you elaborate how Ctrl+Shift+N is not working for you?


We will probably add an option to disable horizontal scrolling.


Drag&drop is already possible for multiple ZIP files when importing to DB.
We need to add similar functionality when opening ZIP files directly in the viewer window.
Aug 23, 2019 03:26 PM
by RadiAnt

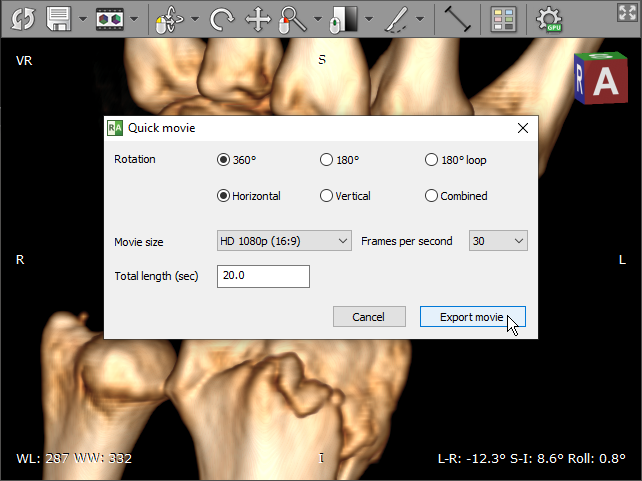

Our recent BETA (5.1.14) has a new "Quick movie" feature (F4) in the 3D VR window -
Forum post picture
Aug 26, 2019 12:41 PM
by Jonas
> Drag&drop is already possible for multiple ZIP files when importing to DB.
> We need to add similar functionality when opening ZIP files directly in the viewer window.

Yes, that would be great. And I assume that is not complicated to implement. I prefer to have studies zipped on my local computer - firstly, DICOMs can easily be compressed and studies consume less space; secondly, it is much easier to move them around (from/to USB, share online) as it is less I/O for computer itself.
Sep 6, 2019 06:32 PM
by Daniel
Hi... thank you very much for these new features, great job!

Is it possible to apply filtes to the overlay series in fused images? This would be very useful for noisy PET images.

Thanks again
Sep 7, 2019 04:07 PM
by Daniel
(Sorry, I meant "filters")
Sep 11, 2019 06:38 PM
by RadiAnt
Daniel, thank you!
Currently image filters do not work for fused images. We will consider this improvement.
Sep 11, 2019 06:40 PM
by RadiAnt
We have added the option to export movies from 2D viewer in MP4 format in the latest RadiAnt 5.1.16 BETA -
This feature is only supported on Windows 7 and newer systems.
Sep 12, 2019 06:29 AM
by boskar
... and therefore the feature is unsupported on current wine.
( 0035:fixme:mfplat:MFCreateSinkWriterFromURL )
Sep 27, 2019 09:50 PM
by RadiAnt
RadiAnt DICOM Viewer 5.1.21 Beta is the last version in this beta cycle.
If no issues come up, we will upload a release candidate soon.
